Perfect for cabinets, small enclosures, or pedestrian gatesHolding force: 300-lb (136kg)12 VDC operation Stainless steel housing No residual magnetismMOV surge protection“L” (E-941S300R/LQ), “Z” (E-941S300R/ZQ), and “U” (E-941S300R/UQ) Brackets available for easy mountingSelectable 12/24 VDC operationHolding Force300-lb (136kg)Operating Voltage12/24 VDC ±10%Current Draw420mA@12VDC, 210mA@24VDCOperating Temperature14º~131º F (-10º~55º C)Electromagnet Dimensions7-7/8″ x 1-3/8″ x 1″ (200 x 35 x 24 mm)RoHS ComplianceYesArmature Dimensions6″ x 3/8″ x 1-1/4″ (152 x 10 x 32 mm)Weight3-lb 5-oz (1.5kg)Case Quantity10 pcs

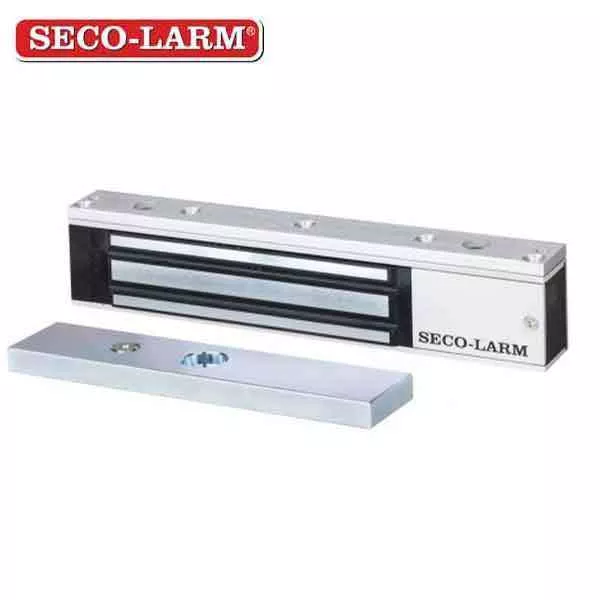

Seco-Larm – Single Door Maglock – 300 lb Holding Force -UL Listed
Original price was: $69.90.$37.90Current price is: $37.90.
Sale!Related products
Sale!

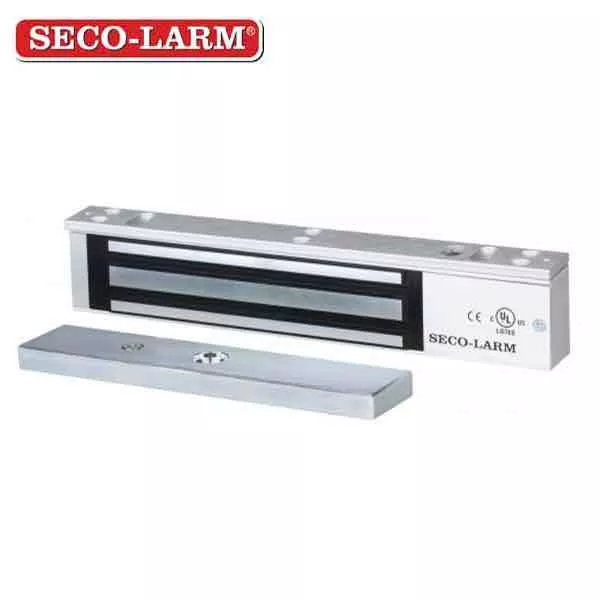

Seco-Larm – Single Door Maglock – 600 lb Holding Force – UL Listed
Original price was: $91.65.$51.58Current price is: $51.58.
Sale!
SDC – 1581 – Single Magnetic Lock – Surface Mount – 650lbs. – Optional Door Position Sensor – 12/24VDC – Satin Aluminum – Grade 1
Original price was: $229.30.$154.33Current price is: $154.33.
Sale!
Complete Door Kit – Single Door Maglock 1200 lb w/ Stand Alone Keypad Controller – Wireless Remote Control Switch Kit – 12VDC Transformer & Contactless Door Exit Button (BUNDLE)
Original price was: $142.30.$95.89Current price is: $95.89.
Sale!
Seco-Larm – Double Door Maglock – 1,200 lb Holding Force per Door- UL listed
Original price was: $188.94.$109.94Current price is: $109.94.
Sale!

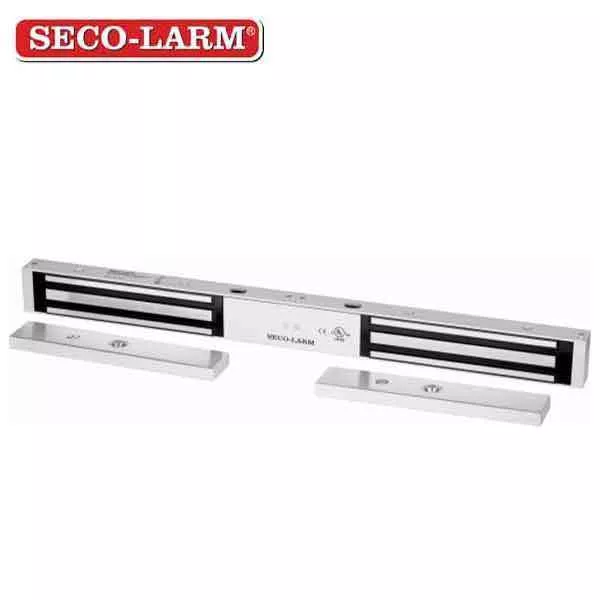

Seco-Larm – Double Door Maglock – 600 lb Holding Force per Door – UL Listed
Original price was: $159.54.$99.50Current price is: $99.50.
Sale!

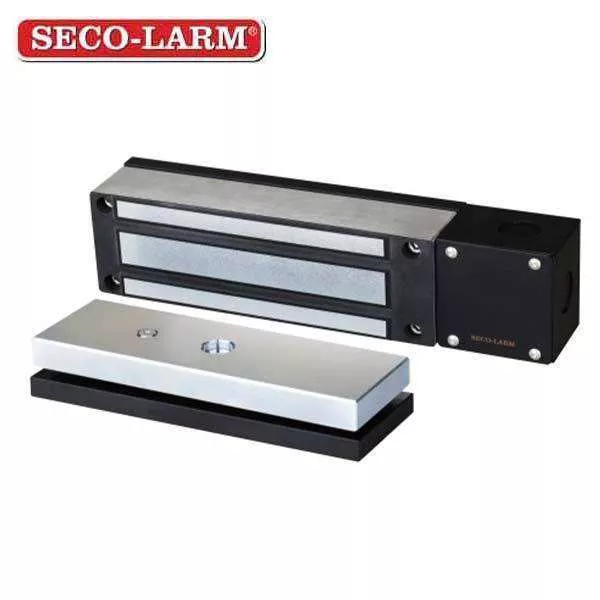

Seco-Larm – Outdoor Gate Maglock- 1200 lb Holding Force – Face Mount – Weldable – UL Listed
Original price was: $235.80.$124.81Current price is: $124.81.
Sale!

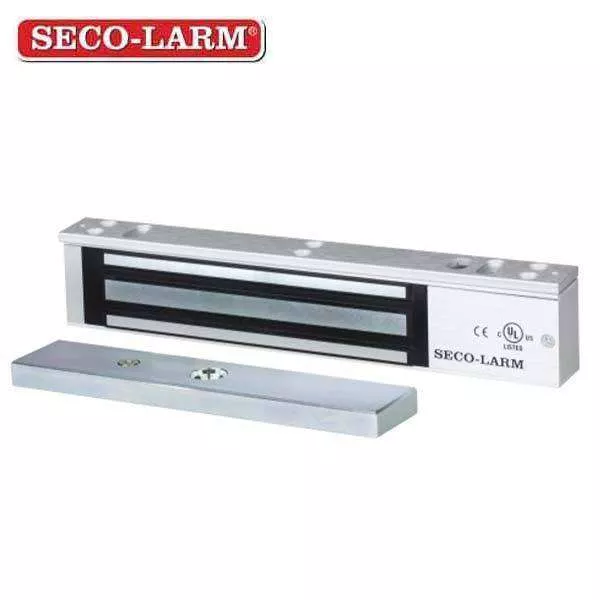

Seco-Larm – Single Door – Maglock – 600 lb Holding Force – Bond Sensor – Status LED w/ Mounting Accessories – CE listed
