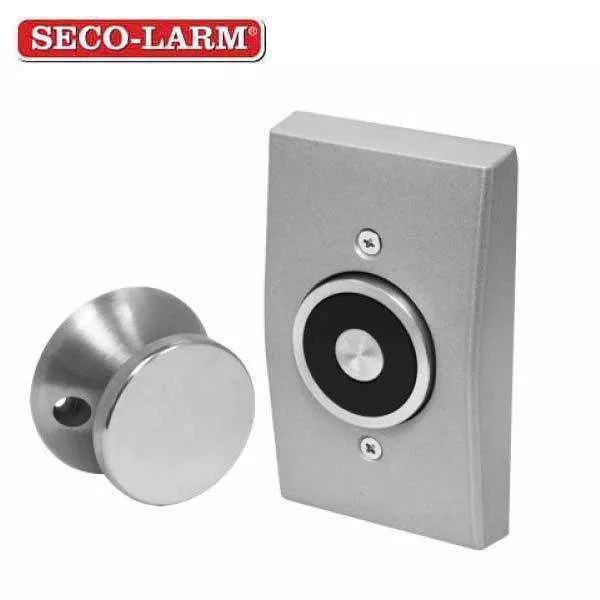

Seco-Larm – Magnetic Door Holder – Flush Mount – UL Listed

SLM-DH-171SQThe UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.For use with door closers to control the release and closing of residential, commercial, and public area doorsAdjustable armature plate reduces installation time and adjusts to door alignment changesLow profile designHolding force – 33-lb (15kg)3 voltages: 12/24 VAC/VDC, and 120VACCast aluminum faceplateNo residual magnetism for easy releaseBuilt-in voltage spike suppressorUse with SECO-LARM door closersOptional extension bars available: 1/2″, 3/4″, 1″, 2″, 3″, 4″, 5″, 6″, 7″ (13mm, 19mm, 25mm, 50mm, 76mm, 102mm, 127mm, 152mm, 178mm)Holding Force33-lb (15kg)InstallationFlush-mountOperating Voltage12/24 VAC/VDC, 120VACCurrent Draw52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31m@24VDC, 24mA@120VACMagnet Box Weight1-lb 1.5-oz (468g)Door Armature Weight8.1-oz (230g)Electromagnet Dimensions2-3/4″ x 4-9/16″ x 2-1/16″ (70 x 116.5 x 52 mm)Armature Dimensions2-9/16″ x 2-9/16″x 1-9/16″ (65 x 65 x 40 mm)Downloads:DatasheetsManual
