Standard Features
Large clean-out surface around the bolts
Locating tab for ease of bolt alignment
“Monitoring Well” cast into cover
Easy to replace gaskets without tools or glue (7″, 9″, and 12″)
API 615 equilateral triangle cast into cover
Construction Details
- Bolts: Stainless hex head
- Gasket: Buna-N
- Cover: Cast iron
- Ring: Cast iron
- Skirt: 14 gauge continuously welded
- Nylon washers
Certifications & Listings
Meets H-20 load requirements
| Fig | Suffix | Size | Weight | |

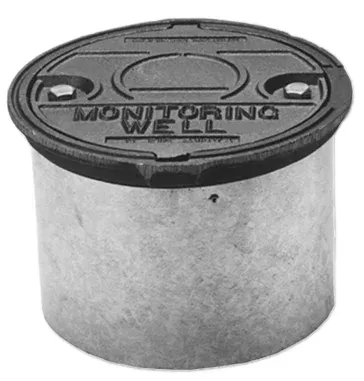

| 418XAH | 0300 AM | 9″ x 12″ | Monitoring Well-Limited Access Manhole-Heavy Skirt | 22 |
