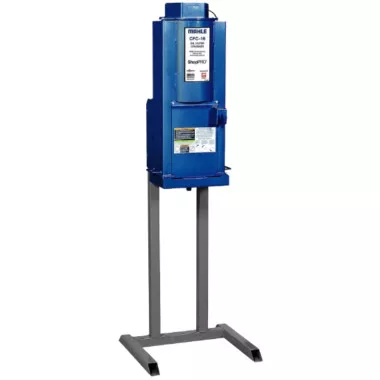

Mahle CFC-16 – Commercial Vehicle Filter Crusher – 16″ chamber
Features
- Accommodates up to 4 automotive spin-on oil filters.
- Interlocking feature prevents door from opening until the ram is fully retracted.
- Removable catch basin allows crusher to be cleaned periodically.
- 100% air operated.
- Mounting stand included and no complicated set-up or installation required.
Specifications
| Dimensions (H x W x D) | 85.5 in x 20.5 in x 16.8 in (217 cm x 52 cm x 43 cm) |
| Shipping Weight | 282 lb (128 kg) |
| Crushing Chamber Dimensions (H x W x D) | 16.3 in x 10 in x 8 in (41 cm x 25 cm x 20 cm) |
| Air Inlet | 1/4 female npt |
| Air Pressure | 100 to 200 psi (6.9 to 13.8 bar) |
| Catch Basin Connection | 3/4 female npt |
| Stand Dimensions (H x W x D) | 61 in x 29 in x 27 in (155 cm x 74 cm x 69 cm |
Downloads
Operation Manual
Flyer
Warranty Information
