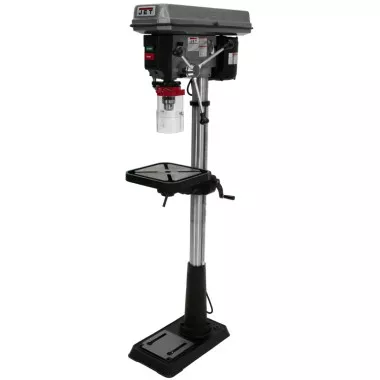

JET Tools J-2500, 15″ Floor Model Drill Press 115V 1Ph
The JET J-2500 is a 15-inch floor-model drill press with a cast iron head and ground steel column for stable, accurate drilling. Sixteen spindle speeds and a 3-1/8 inch stroke support a wide range of materials and deep-hole work, with a table that tilts 45 degrees.
Features
- Constructed to provide a solid base for drilling.
- Cast Iron head.
- Large ground steel column for maximum head and table support.
- A large quill allows greater accuracy.
- 3-1/8″ stroke for deep hole applications.
- Accurate depth stop for precise hole depths.
- Table tilts 45º.
- 5/8″ drill chuck and arbor.
- Telescoping safety spindle guard.
- The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy.
Specifications
| Model Number | J-2500 |
| Drills to Center Circle (in.) | 15 |
| Drilling Capacity Cast Iron (in.) | 5/8 |
| Drilling Capacity Mild Steel (in. | 1/2 |
| Column Diameter (in.) | 2-7/8 |
| Distance Column to Spindle (in. | 7-1/2 |
| Number of Speeds | 16 |
| Range of Spindle Speeds (rpm) | 200, 290 ,350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630 |
| Spindle Travel (in.) | 3-3/8 |
| Spindle Distance to Base (in.) | 48 |
| Spindle Distance to Table (max. / in.) | 24 |
| Table Size (in.) | 11-1/2 x 11-1/2 |
| Table Travel (in.) | 24 |
| Work Table Weight Capacity (lbs.) | 44 |
| Spindle Taper | MT-2 |
| Base Dimensions (L x W / in.) | 11 x 19-1/2 |
| Base Work Table (in.) | 7 x 7-1/2 |
| Motor (HP) | 3/4HP, 115V, 1Ph, |
| Overall Dimensions (L x W x H / in.) | 31 x 13 x 63 |
| Weight (lbs.) | 167 |
