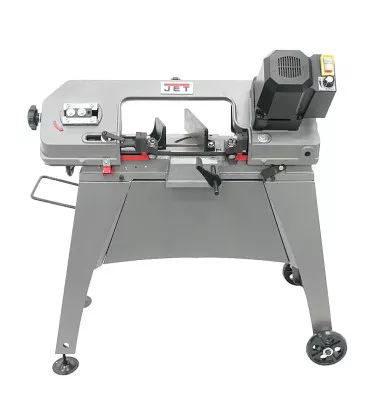

JET Tools HVBS-56V 5″ X 6″ VS Horizontal/Vertical Variable Speed Bandsaw , 1/2HP,1-PH
The JET HVBS-56V is a 5 x 6 inch variable-speed bandsaw that cuts in both horizontal and vertical positions. A DC motor with a 3-step gear transmission increases torque output, and variable speed lets the operator match the blade to the material being cut.
Features
- Heavy duty casted head for years of sawing.
- Improved stand with built in shelf.
- DC motor with 3-step gear transmission increases torque output.
- Ball bearing supported blade wheel.
- CSA/CUS: Following strict guidelines and electrical requirements, this JET Saw is CSA/CUS certified
- Blade is fully guarded.
- Automatic shut-off after cut.
- Variable Speed gives you the ability to cut various material.
- Fully adjustable ball bearing blade guides.
- Front legs feature leveling pads.
- Wheels come standard for ease of movement around your shop.
- Vertical Worktable.
- Adjustable Material Stop.
- 1/2″ Carbon Steel Blade 14T.
Specifications
| Model Number | HVBS-56V |
| Round Capacity at 90 (in.) | 5 |
| Round Capacity at 45 (in.) | 3 |
| Rectangle Capacity at 90 (in.) | 5 (H) x 5-3/4 (W) & 2 (H) x 6 (W) |
| Rectangle Capacity at 45 (in.) | 4-1/2 (H) x 3 (W) |
| Throat Depth (in.) | 5 |
| Vertical Worktable (in.) | 9-5/8 x 9-1/2 |
| Vise Swivels (deg.) | 45 |
| Blade Size (in.) | 1/2 x .025 x 64-1/2 |
| Blade Wheel Diameter (in.) | 7-3/8 |
| Blade Speed (sfpm) | Variable 80 – 230 |
| Hardened Ferrous (sfpm) | 82 – 130 |
| Ferrous (sfpm) | 130 – 180 |
| Non-Ferrous, Plastic, Wood (sfpm) | 180 – 230 |
| Prewired | 115V |
| Floor Space Required (L x W x H / in.) | 36 x 20 x 39 1/2 |
| Motor (HP) | 1/2 HP, 115V, 1Ph |
| Weight (lbs.) | 121 |
