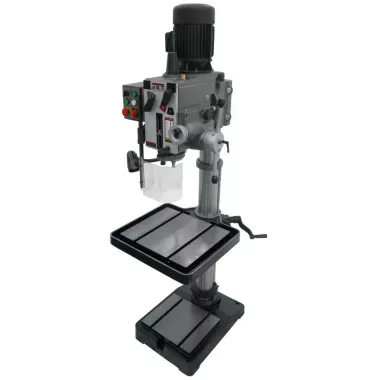

JET Tools GHD-20PFT, 20″ Gear Head Tapping Drill Press W/Power Down feed 230V, 3Ph
The JET GHD-20PFT is a 20-inch geared head drill press for both drilling and tapping, with a power downfeed speed selector for consistent plunge feeding. Integrated tapping and reversing controls, a built-in spindle lock, and a large T-slotted production table support precise repetitive work, and the head tilts left or right.
Features
- Easily accessible table raiser.
- Head tilts left or right.
- Heavy-duty design allows a variety of precision drilling and tapping applications.
- Integrated tapping and reversing controls.
- Large production table and T-slotted base.
- Power down feed speed selector.
Specifications
| Model Number | GHD-20PFT |
| Base Dimensions (In.) | 26 x 18 |
| Base Work Table (In.) | 15-1/4 x 13 |
| Column Diameter (In.) | 4-1/2 |
| Distance Column to Spindle (In.) | 10 |
| Drilling Capacity Cast Iron (In.) | 1-1/2 |
| Drilling Capacity Mild Steel (In.) | 1-1/4 |
| Drills to Center of Circle (In.) | 20 |
| Motor (HP) | 2 HP (2 Speed), 230V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 32 x 24 x 71 |
| Quill Diameter (In.) | 3 |
| Quill Feed | Manual |
| Range of Spindle Speeds (RPM) | 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000 |
| Spindle Distance to Base (In.) | 44-5/16 |
| Spindle Distance to Table (Max.) (In.) | 30-1/2 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 4-1/2 |
| Style (Type) | Geared Head |
| T-Slot Centers (In.) | 9 |
| Table Size (L x W) (In.) | 21-3/4 x 19-1/2 |
| Table Travel (In.) | 25-1/2 |
| Tapping Capacity Cast Iron (In.) | 15/16 |
| Tapping Capacity Mild Steel (In.) | 15/16 |
| Work Table Weight Capacity (Lbs.) | 275 |
| Weight (Lbs.) | 708 |
