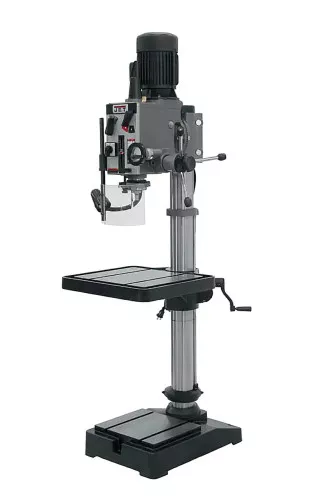

JET Tools GHD-20, 20″ Gear Head Drill Press 230V, 3Ph
The JET GHD-20 is a 20-inch geared head drill press suited to repetitive drilling across many materials. Helical gears give smooth, quiet operation, and the head and table rotate 360 degrees around the column with three power downfeed rates for heavier work.
Features
- Heavy-duty design allows a variety of precision drilling applications.
- Large production table and T-slotted base.
- Easy-to-read internal depth gauge.
- Three power downfeed rates.
- Calibrated fine downfeed built in.
- TEFC motor.
- Built-in spindle lock.
- Head tilts left or right.
- Easily accessible table raiser.
- Drill chuck arbor.
- Draw bar.
Specifications
| Model Number | GHD-20 |
| Drills to Center Circle (in.) | 20 |
| Drilling Capacity Cast Iron (in.) | 1-1/2 |
| Drilling Capacity Mild Steel (in.) | 1-1/4 |
| Column Diameter (in.) | 4-1/2 |
| Distance Column to Spindle (in.) | 10 |
| Range of Spindle Speeds (rpm) | Low 60, 130, 230, 450, 800, 1500 High 120, 260, 460, 900, 1600, 3000 |
| Spindle Taper | MT-3 |
| Spindle Travel (in.) Manual | 5 |
| Spindle Distance to Base (in.) | 44-15/16 |
| Spindle Distance to Table (max. / in.) | 30-1/2 |
| Table Size (in.) | 21-3/4 x 19-1/2 |
| T-Slots Number and Size (in.) | 2 & 5/8 |
| T-Slot Centers (in.) | 9 |
| Work Table Weight Capacity (lbs.) | 275 |
| Base Dimensions (L x W x H / in.) | 26 x 18 x 5 |
| Base Work Table (in.) | 15-1/4 x 13 |
| Base Slots Number & Size (in.) | 2 & 5/8 |
| Motor (HP) | 2HP, 230V, 3Ph |
| Overall Dimensions (L x W x H / in.) | 32 x 24 x 71 |
| Weight (lbs.) | 698 |
