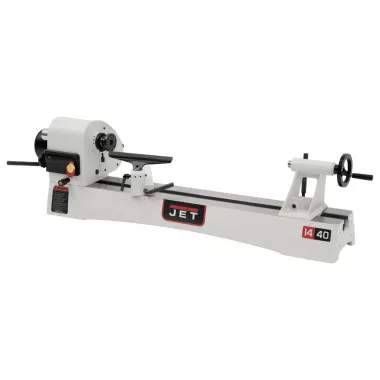

JET Tools 719400 JWL-1440VS 14″ x 40″ Benchtop Variable Speed Wood Lathe, 1HP 1PH 115/230V
The JET JWL-1440VS is a 14-inch by 40-inch benchtop variable-speed wood lathe with a 1 HP motor for turning bowls, spindles and other projects. Speed adjusts from 400 to 3000 RPM with a digital readout, and the sliding headstock pivots 360 degrees with seven locking positions for outboard turning and operator comfort.
Features
- Acme Thread in Tailstock.
- CSA Certified.
- Easy-to-read RPM display.
- Improved tailstock quill locking with anti-rotation key.
- Optional extension bed takes the capacity to 60″ between centers.
- Positive locking tool rest with redesigned clamping.
- Sliding headstock pivots 360 degrees with 7 positive locking positions at 0, 30, 60, 90, 120, 180, and 270 degrees for maximum variability and optimal user comfort.
- Variable speed from 400-3000 RPM.
Specifications
| Stock Number | JT-719400 |
| Bed Construction | Cast Iron |
| Centerline of Spindle to Floor (In.) | 44 |
| Model Number | JWL-1440VS |
| Motor Amps | 11/5.5 |
| Motor Power (HP) | 1 |
| Number of Indexing Positions | 36 |
| Prewired Voltage (V.) | 115 |
| Spindle Bore (In.) | 3/8 |
| Style (Type) | Benchtop |
| Swing Over Bed (In.) | 14-1/2 |
| Swing Over Tool Rest Base (In.) | 11 |
| Weight | 270 |
