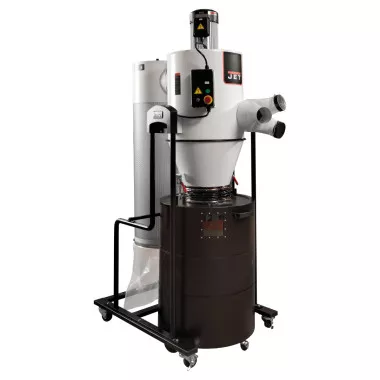

JET Tools 717530K JCDC-3 Cyclone Dust Collector Kit, 3HP 1PH 230V
The JET 717530K (model JCDC-3) is a 3 HP single-phase two-stage cyclone dust collector for the workshop, running on 230V power. Heavy debris drops into a 66-gallon collection drum before reaching the direct-mounted pleated filter, which captures fine particles down to 1 micron, and the unit includes a radio-frequency remote control.
Features
- Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends.
- Double paddle manual cleaning system quickly cleans the pleated filter.
- Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below.
- Heavy debris is captured in a 66 gallon drum with quick release levers and independent casters for quick emptying.
- Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction.
- Included radio frequency remote control works from up to 50 feet away.
- Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff.
- Swivel casters make it easy to move the unit around the shop.
- The cyclone’s two stage separation provides more working CFM than comparable horsepower single stage units.
Specifications
| Stock Number | JT-717530K |
| 1-Hose Connection Diameter (In.) | 8 |
| 3-Hoses Connection Diameter (In.) | 4 |
| Canister Filter Length (In.) | 38-3/8 |
| Collection Drum Capacity (gal.) | 66 |
| Filter Efficiency (Micron) | 1 |
| Impeller Material | Steel |
| MERV Value | 13 |
| Model Number | JCDC-3 |
| Motor Amps | 13 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Static Pressure Loss (EU Method) (Wc.) | 2047 |
| Static Pressure Loss (US Method) (Wc.) | 1260 |
| Weight | 301 |
