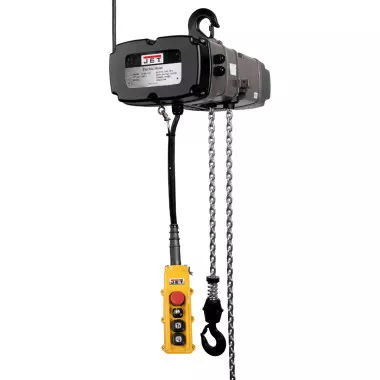

JET Tools 144029 TS100-040 1T ELEC HST 40′ LIFT 3PH 460V
The JET TS100-040 is a 1-ton two-speed electric chain hoist with a 40-foot lift, configured for 460V three-phase industrial lifting. It combines a DC motor brake with a mechanical brake and overload protection so loads are positioned precisely and held safely during a power interruption.
Features
- The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life.
- Patented gear limit switch ensures the product switches off power instantly in the case of over lifting or lowering position.
- DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety.
- Two Speed Motor ensures the correct speed for the job with a click of a button.
- IP55 TEFC Motor with Class F insulation for working in harsh environments.
- 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads.
- Pendant Control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service.
- Built in heat protection will not allow lifting if internal temperatures exceed 285° F (+/-40°). Load will be allowed to be lowered until unit cools. This saves internal components and extends the life of the product.
- Comes with 10ft power supply cord.
Specificationes
| Stock Number | JT-144029 |
| Capacity (Lbs.) | 2200 |
| Duty Cycle (%) | 40 / 20 |
| Duty Cycle Rating | H4 |
| Lift (Ft.) | 40 |
| Lifting Speed (FPM) | 33 / 8 |
| Load Capacity (Tons) | 1 |
| Max. Number of Starts (Per Hr.) | 240 |
| Max. On Time (Min. / Hr.) | 30 |
| Model Number | TS100-460-040 |
| Motor (HP) | 1-1/2 HP, 460V, 3Ph |
| Motor Phase | 3 |
| Overload Protection | Yes |
| Weight (Lbs.) | 192 |
| Headroom (In.) | 19-7/10 |
| Overall Width (In.) | 15-1/6 |
