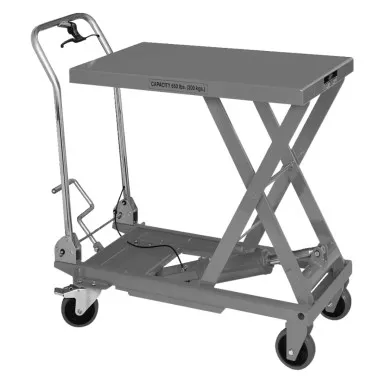

JET Tools 140777 SLT-660F, Scissor Lift Table, Folding Handle, 660-lb. Capacity
The JET SLT-660F is a mobile scissor lift table with a 660-lb capacity for raising, positioning and moving heavy materials around a shop, factory or warehouse. A hydraulic foot pump controls the lift, a fold-down handle stores out of the way, and four wheels with rear parking brakes let one person reposition loads.
Features
- All steel design of frame and table permit the transport of heavy materials.
- Easy-to-use hydraulic foot pump for precision raising and lowering of table.
- Fixed rear wheels feature parking brakes for added safety.
- Fold-down handle for easy storage.
- Overload Protection ball valve prevents lifting loads past maximum capacity.
- Smooth rolling 5 inch poly over nylon wheels, two swivel and two fixed for increased maneuverability.
- Top-Stroke release valve prevents cylinder extension beyond maximum height.
Specifications
| Stock Number | JT-140777 |
| Capacity (Lbs.) | 660 |
| Handle Height (In.) | 40 |
| Maximum Height (In.) | 32-3/8 |
| Minimum Height (In.) | 10-5/8 |
| Model Number | SLT-660F |
| Number of Strokes to Reach Maximum Height | 13 |
| Overall Dimensions (L x W x H) (In.) | 42-1/2 x 19-5/8 |
| Table Size (L x W) (In.) | 32-1/2 x 19-5/8 |
| Weight (Lbs.) | 165 |
| Wheel Diameter (In.) | 5 |
| Overall Dimensions (L x W / in.) | 42-1/2 x 19-5/8 |
