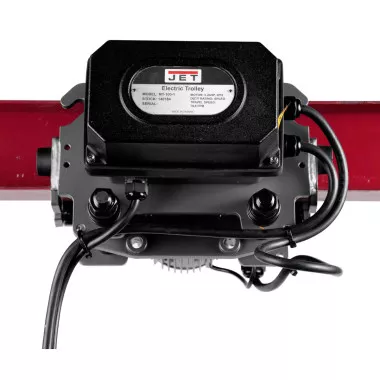

JET Tools 140183 MT050 1/2T ELECTRIC TROLLEY
The JET MT050 is a 1/2-ton electric trolley for moving loads along overhead beams in demanding industrial settings. Two-speed travel lets operators move material quickly and then ease it into position, and its IP-rated trolley and pendant support both indoor and outdoor use.
Features
- Heavy-Duty motor puts out up to 0.8HP making it the strongest in it’s class.
- Two speeds reduces bump firing to while still allowing high speed movement of materials.
- Indoor and Outdoor use with IP-55 rating for trolley and IP-65 rating for the pendant.
- Expanded flange capacity kits are available.
- TAA approved.
Specifications
| Stock Number | JT-140183 |
| Capacity (Lbs.) | 1100 |
| Load Capacity (Tons) | 1/2 |
| Maximum Beam Flange Width (In.) | 5 |
| Minimum Beam Curve Radius (In.) | 51.2 |
| Minimum Beam Flange Width (In.) | 3 |
| Model Number | MT050 |
| Motor (HP) | 0.04 / 0.16 |
| Motor Voltage (V.) | 230 |
| Weight (Lbs.) | 99 |
| Wheel Diameter (In.) | 7/8 |
| Travel Speed – Low (FPM) | 20 |
| Travel Speed – High (FPM) | 79 |
