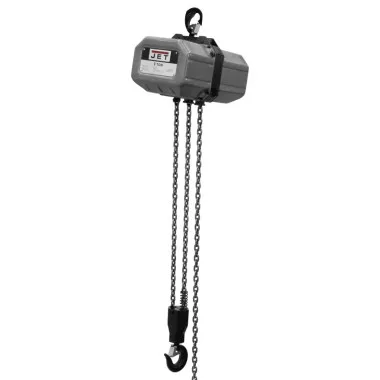

JET Tools 132000 1SS-3C-20, 1 Ton, 3Ph, 20′ Lift, 230/460V, Prewired 460V
The JET 1SS-3C-20 is a 1-ton three-phase electric chain hoist with a 20-foot lift for commercial and industrial material handling. Prewired for 460V, it combines a slip-clutch overload mechanism with a DC electro-magnetic brake that holds the load if power fails, plus a reverse-phase relay that guards against incorrect wiring.
Features
- All Steel Construction- Fully enclosed, all steel plate construction with a durable powder coat finish keeps out moisture, dust and debris lengthening the life of the hoist.
- Certification- Load tested to 125% of capacity with certificate.
- Control Pendant- 24 volt push button controller with cable strain relief system for durability and reliability in industrial and commercial settings.
- Controls- NEMA 4X compliant push button control pendants.
- DC Electro-Magnetic Brake- An industry-proven safety feature that secures the load even if power is interrupted to the hoist.
- Durable powder coat finish.
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability.
- JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are NOT rated or designed for outdoor use or wet environments.
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity.
- Reverse Phase Relay- A safety switch that protects the hoist from incorrect wiring of the power supply.
- Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep.
Specifications
| Stock Number | JT-132000 |
| Capacity (Lbs.) | 2200 |
| Duty Cycle (%) | 30 |
| Duty Cycle Rating | H4 |
| Lift (Ft.) | 20 |
| Lifting Speed (FPM) | 24 |
| Load Capacity (Tons) | 1 |
| Max. Number of Starts (Per Hr.) | 180 |
| Max. On Time (Min. / Hr.) | 18 |
| Model Number | 1SS-3C-20 |
| Motor (HP) | 2-1/7 HP, 460V, 3 Ph |
| Weight (Lbs.) | 172 |
| Headroom (In.) | 24-7/16 |
| Overall Width (In.) | 11.81 |
| Motor Current (Amps) | 12 |
