JET Tools 109100 L100-1500WO-20, 15 Ton 20′ Lift and Overload Protection

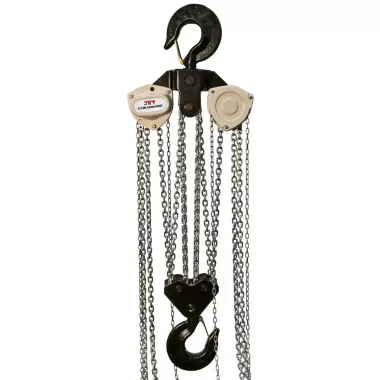

The JET 109100 is an L-100 Series manual hand chain hoist rated for 15 tons with a 20-foot lift and built-in overload protection that stops the hoist before it lifts beyond its rated capacity. Its all-steel construction and Grade 100 load chain suit demanding industrial overhead lifting.
Features
- All steel construction.
- Double sealed ball bearings support the load sheave to increase efficiency and promote smooth operation.
- Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain.
- Heat Treated Load Plates.
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation.
- Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist.
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations.
- The lightweight design and smaller body are ideal for confined areas and low headroom applications.
- Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security.
Specifications
| Stock Number | JT-109100 |
| Hand Chain To Lift Load 1 ft. | 594 |
| Capacity (Lbs.) | 33000 |
| Lift (Ft.) | 20 |
| Load Capacity (Tons) | 15 |
| Load Chain Dimensions dia/mm) | 9 x 27 |
| Model Number | L-100-1500WO-20 |
| Weight (Lbs.) | 397 |
| Lbs. of Pull to Lift Capacity | 81.6 |
| Headroom (In.) | 33-7/8 |
