JET Tools 108100 L100-1000WO-10, 10 Ton 10′ Lift and Overload Protection

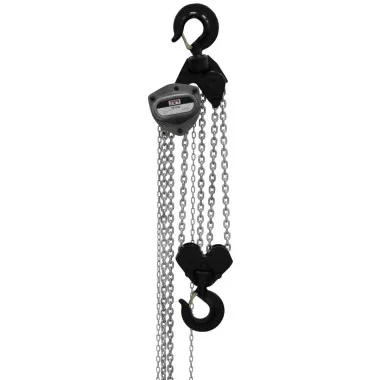

The JET L100-1000WO-10 is a 10-ton hand chain hoist with a 10-foot lift, engineered for the most demanding industrial lifting environments. Built-in overload protection prevents lifting beyond its rated capacity, and the patented fused brake design helps reduce maintenance and downtime in harsh conditions.
Features
- All steel construction.
- Double sealed ball bearings support the load sheave to increase efficiency and promote smooth operation.
- Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain.
- Heat Treated Load Plates.
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation.
- Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist.
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations.
- The lightweight design and smaller body are ideal for confined areas and low headroom applications.
- Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security.
Specifications
| Stock Number | JT-108100 |
| Hand Chain To Lift Load 1 ft. | 396 |
| Capacity (Lbs.) | 22000 |
| Lift (Ft.) | 10 |
| Load Capacity (Tons) | 10 |
| Load Chain Dimensions dia/mm) | 9 x 27 |
| Model Number | L-100-1000WO-10 |
| Weight (Lbs.) | 176 |
| Lbs. of Pull to Lift Capacity | 79 |
| Headroom (In.) | 29-7/8 |
