Huth Ben Pearson 028 Die Package Tooling

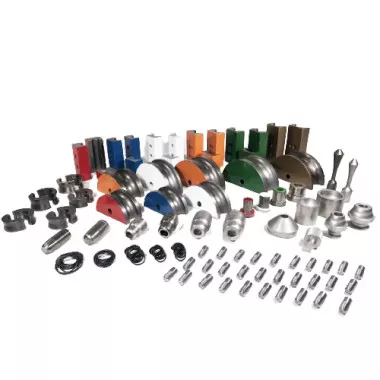

Huth has combined the tooling you’ll be reaching for most often into comprehensive, convenient tooling packages. Our Die Packages combine the tooling for bending and end-finishing with the accessories you need to get the most from your bender. Some of these packages even include Huth’s exclusive Program Card Bending System, containing all the information you need to bend pipe for thousands of applications.
028 Die Package Tooling Includes:
|
| Radius Dies |
| NO. |
RADIUS |
SIZE |
| 5530* |
5″ |
3″ |
| 5200* |
5″ |
2″ |
| 5414* |
5″ |
2-1/4″ |
| 5412* |
5″ |
2-1/2″ |
| 4200 |
4″ |
2″ |
| 4414 |
4″ |
2-1/4″ |
| 3112 |
3″ |
1-1/2″ |
| 3134 |
3″ |
1-3/4″ |
| *Requires 41041 retainer |
|
|
| Half Shoes |
| NO. |
SIZE |
| 1038 |
1-1/2″ |
| 1040 |
1-3/4″ |
| 1045 |
2″ |
| 4416 |
2-1/4″ |
| 4410 |
2-1/2″ |
|
|
| Swage Dies |
| NO. |
SIZE |
| 112 |
1-1/2″ |
| 134 |
1-3/4″ |
| ** |
For a 2″ ID Use Male Ball Tool 550 |
| *** |
For a 2-1/4″ ID Use Male Ball Tool 552 |
| **** |
For a 2-1/2″ ID Use Male Ball Tool 553 |
| ***** |
For a 2-3/4″ ID Use Male Ball Tool 554 |
|
|
| Ball Joint Tooling |
| NO. |
SIZE |
| 550 |
1-3/4″ Male** |
| 552 |
2″ Male*** |
| 553 |
2-1/4″ Male**** |
| 554 |
2-1/2″Male***** |
| 555 |
1-3/4″ to 2″ Female |
| 556 |
2-1/4″ to 2-1/2″ Female |
|
|
| Segment Sets |
| NO. |
SIZE |
| 472 |
1-1/2″ to 1-3/4″ Solid Surface |
| 474 |
1-3/4″ to 2-1/8″ |
| 475 |
2-1/8″ to 2-1/2″ |
| 476 |
2-1/2″ to 3″ |
|
|
| |
|
|
|
|
|
|
|
|
|
| Back Shoes |
| NO. |
PCS. |
SIZE |
| 1112 |
2 |
1-1/2″ |
| 1134 |
2 |
1-3/4″ |
| 1200 |
2 |
2″ |
| 4211 |
2 |
2-1/4″ |
| 4412 |
2 |
2-1/2″ |
| 1350 |
2 |
3″ |
|
|
| Doming Dies |
| NO. |
SIZE |
| 557 |
2-1/2″ |
| 558 |
2-3/4″ |
|
|
| Accessories |
| NO. |
|
| 853 |
1-1/2″ to 3-1/2″ Flaring/Flanging Tool |
| 855 |
Die pins (30) |
| 815 |
Die Holder |
| 870 |
Rubber O-Ring Assortment |
|
|
| Arbor |
| NO. |
SIZE |
| 572 |
1-3/8″ to 1-3/4″ One Piece |
| 573 |
1-3/4″ to 4″ One Piece |
|
|
| Collet Sets |
| NO. |
SIZE |
| 1712 |
1-1/2″ |
| 1734 |
1-3/4″ |
| 1720 |
2″ |
| 1725 |
2-1/4″ |
| 1750 |
2-1/2″ |
|
|
