Huth Ben Pearson 011 Die Package Tooling

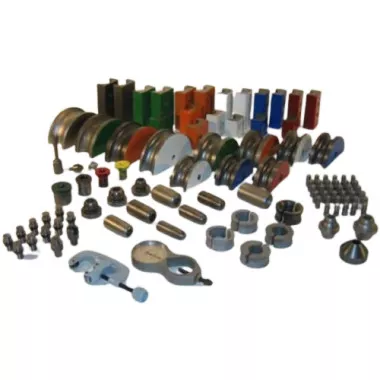

Huth has combined the tooling you’ll be reaching for most often into comprehensive, convenient tooling packages. Our Die Packages combine the tooling for bending and end-finishing with the accessories you need to get the most from your bender. Some of these packages even include Huth’s exclusive Program Card Bending System, containing all the information you need to bend pipe for thousands of applications.
011 Die Package Tooling Includes:
| Radius Dies |
| NO. |
RADIUS |
SIZE |
| 5530* |
5″ |
3″ |
| 5200* |
5″ |
2″ |
| 5414* |
5″ |
2-1/4″ |
| 5412* |
5″ |
2-1/2″ |
| 4112 |
4″ |
1-1/2″ |
| 4134 |
4″ |
1-3/4″ |
| 4200 |
4″ |
2″ |
| 4414 |
4″ |
2-1/4″ |
| 4409 |
4″ |
2-1/2″ |
| 3112 |
3″ |
1-1/2″ |
| 3134 |
3″ |
1-3/4″ |
| 3200 |
3″ |
2″ |
| *Requires 41041 retainer |
|
|
| Half Shoes |
| NO. |
SIZE |
| 1038 |
1-1/2″ |
| 1040 |
1-3/4″ |
| 1045 |
2″ |
| 4416 |
2-1/4″ |
| 4410 |
2-1/2″ |
|
|
| Accessories |
| NO. |
|
| 825 |
Quick Disconnect Kit |
| 835 |
Tube Cutter |
| 853 |
1-1/2″ to 3-1/2″ – Flaring/Flanging Tool |
| 855 |
Die pins (36) |
| 996 |
Rotation Dial |
| 97091 |
Ruler – No Longer Available |
| 97092 |
Huth Marking Pen – No Longer Available |
| 980 |
Program Card System in Electronic Format |
|
|
| Ball Joint Tooling |
| NO. |
SIZE |
| 555 |
1-3/4″, 1-7/8″, 2″ – Female |
| 556 |
2-1/4″, 2-1/2″ – Female |
|
|
| |
|
|
|
|
|
|
|
| Back Shoes |
| NO. |
PCS. |
SIZE |
| 1112 |
2 |
1-1/2″ |
| 1134 |
2 |
1-3/4″ |
| 1200 |
2 |
2″ |
| 4211 |
2 |
2-1/4″ |
| 4412 |
2 |
2-1/2″ |
| 1350 |
2 |
3″ |
|
|
| Collet Sets |
| NO. |
SIZE |
| 1712 |
1-1/2″ |
| 1734 |
1-3/4″ |
| 1720DF |
2″ |
| 1725 |
2-1/4″ |
| 1750 |
2-1/2″ |
|
|
| Segment Sets |
| NO. |
SIZE |
| 472 |
1-1/2″ to 1-3/4″ Solid Surface |
| 474 |
1-3/4″ to 2-1/8″ |
| 475 |
2-1/8″ to 2-1/2″ |
| 476 |
2-1/2″ to 3″ |
|
|
| Ball Joint Segments |
| NO. |
SIZE |
| 419 |
2″ |
| 420 |
2-1/4″ |
| 421 |
2-1/2″ |
|
|
| |
|
|
|
|
|
|
|
| Three-Quarter Shoes |
| NO. |
SIZE |
| 1046 |
2″ |
| 4413 |
2-1/4″ |
|
|
| Swage Dies |
| NO. |
SIZE |
| 112 |
1-1/2″ |
| 134 |
1-3/4″ |
| 178 |
1-7/8″ |
| 120 |
2″ |
| 125 |
2-1/4″ |
| 150 |
2-1/2″ |
|
|
| Flaring Tool |
| NO. |
SIZE |
| 518 |
2″ Double Flare and 1-1/2″ Flat Flare |
|
|
| Arbor |
| NO. |
SIZE |
| 572 |
1-3/8″ to 1-3/4″ One Piece |
| 573 |
1-3/4″ to 4″ One Piece |
|
|
