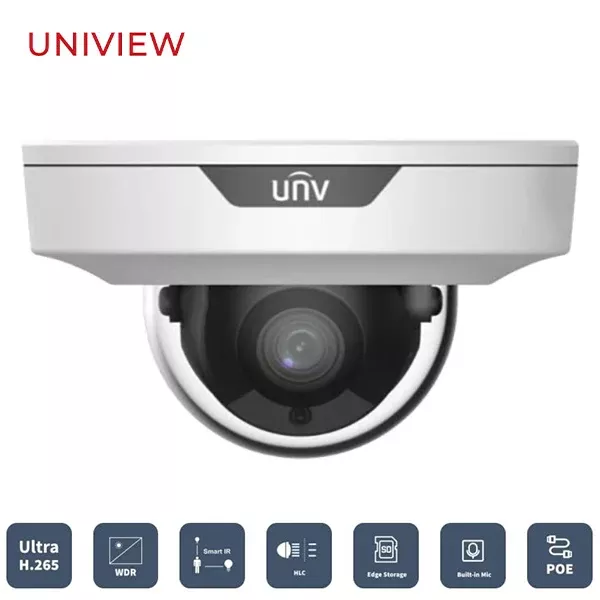

*Discontinued* Uniview / UNV / IP / 4MP / Dome Camera / Fixed / 2.8mm Lens / WDR / 30m Smart IR / 3 Year Warranty / UNV-354SR3-ADNPF28-F

High quality image with 4MP, 1/2.7″CMOS sensorUltra 265, H.265, H.264, MJPEG120dB true WDR technology enables clear image in strong light sceneAlarm:1 in/1 out, Audio: 1 in/1 outSmart IR, up to 30m (98ft) IR distanceSupports 256 G Micro SD cardCustomer Service: USA: 800-860-7999 | Canada: 800-914-6008Call 1-800-878-6604 for Dealer Prices!Technical SpecificationCamera Sensor1/3″, 4.0 megapixel, progressive scan, [email protected] Distance – Lens 2.8mm – Detect (m)63.0DORI Distance – Lens 2.8mm – Observe (m)25.2DORI Distance – Lens 2.8mm – Recognize (m)12.6DORI Distance – Lens 2.8mm – Identify (m)6.3Angle of View (H) 95.8°Angle of View (V) 55.2°Angle of View (O) 124.5°Adjustment anglePan: 3° ~ 360°Tilt: 0° ~ 68°Rotate: 3° ~ 360°ShutterAuto/Manual, 1 ~ 1/100000sMinimum IlluminationColour: 0.01Lux (F2.0, AGC ON)0Lux with IRDay/NightIR-cut filter with auto switch (ICR)Digital Noise Reduction2D/3D DNRS/N>56dBDefogDigital DefogIR RangeUp to 30m (98ft) IR rangeWavelength850nmIR On/Off ControlAuto/ManualWDR120dBVideo Video CompressionUltra 265, H.265, H.264, MJPEGH.264 code profileBaseline profile, Main ProfileFrame RateMain Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fpsSub Stream: 4CIF (704*576), Max 30fps;Third Stream: CIF (352*288), Max 30fpsVideo Bit Rate128 Kbps~16 MbpsOSDUp to 4 OSDsPrivacy MaskUp to 4 areasROIUp to 2 areasMotion DetectionUp to 4 areasImage White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2Digital Noise Reduction2D/3D DNRSmart IRSupportedFlipNormal/Vertical/Horizontal/180°DewarpingN/AHLCSupportedBLCSupportedAudioAudio CompressionG.711Two-way audioSupportedSuppressionSupportedSampling Rate8KHZStorageEdge StorageMicro SD, up to 256GBNetwork StorageANR, NetworkProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoSCompatible IntegrationONVIF (Profile S, Profile G, Profile T), APIClientEZStationEZViewEZLiveWeb BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and belowPlug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+Interface Audio I/O – Input:impedance 35kΩ; amplitude 2V [p-p]Audio I/O – Output: impedance 600Ω; amplitude 2V [p-p]Built-in MicSupportedAlarm I/O1/1Network10M/100M Base-TX EthernetCertifications CertificationsCE: EN 60950-1UL: UL60950-1FCC: FCC Part 15General PowerDC 12V±25%, PoE (IEEE 802.3af)Power consumption: Max 5.5WDimensions (L × W × H)Φ108.6 x 61.8mm (Ø4.28” x 2.43”)Net Weight0.22kg (0.49lb)MaterialMetal + PlasticWorking Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)Strorage Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)surge protection2KVReset Button SupportedDownloadsData SheetInstallation GuideUser ManualOptics Day/night functionality Smart IR, up to 30m (98ft) IR distance Up to 120 dB WDR (Wide Dynamic Range) 2D/3D DNR (Digital Noise Reduction)Compression Ultra 265, H.265, H.264, MJPEG ROI (Region of Interest) Customized OSDNetwork ONVIF ConformanceStructure Built-in Mic Micro SD, up to 256GB Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F) Wide input voltage range of ±25% 3-Axis Smart IRSmart IR and 2D/3D digital noise reduction are combined to show outstanding image quality. Two high-powered car-grade LEDs with Smart IR technology efficiently enhance IR compensation in completely dark scene. Meanwhile, DNR technology can widely utilize in static and movement scenes to reduce noise on images and display clear image under low light.ONVIF COMPATIBILITYIf you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
