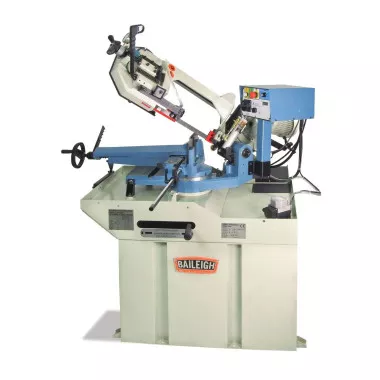

Baileigh BS-260M Dual-Mitering Gear-Driven Bandsaw, 1Ph 220V
The gear-driven BS-260M industrial band saw is one of the most versatile saws on the market. An AC inverter for speed control runs on 220-volt single-phase power.
Features
- Capacity of 8.66” round at 90° and accepts standard 1” blades.
- Dual-mitering head swivels up to 60° to the right and up to 45° to the left. Change the miter angle in seconds with the quick-release head lock.
- Solid cast iron saw bow and pivot ensure the straightest cuts with little to no vibration.
- 8 precision ball bearings keep the blade in line.
- Patented blade tensioning device helps you check the tension and safely shuts down the machine if the blade breaks.
- You can adjust the cutting speed from 66 to 280 fpm to make high-quality cuts in a specific material.
- Direct-drive gearbox design saves you time in the long run—no pulleys to adjust or belts to break!.
- 2 operating modes: Manual descent mode for small production runs and Hydraulic descent for larger production runs.
- Comes standard with a powerful flood coolant system that washes away metal chips, cools and lubricates the blade, and helps prolong blade life.
- Fully welded steel base stabilizes the saw, reduces vibrations, and helps to maintain accuracy for decades.
Specifications
| Model Number | BS-260M |
| Blade Guide | Carbide x Roller |
| Blade Speeds (SFPM) | 66–280 Variable |
| Capacity Round 90 X 45 X 60 X 45 | 8.66″ / 5.9″ / 3.5″ / 5.31” |
| Capacity Square 90 X 45 X 60 X 45L | 8.46″ / 5.7″ / 3.34″ / 4.33” |
| Descent Control | Hydraulic |
| Drive | Gear |
| Input Power | 220V 1-Phase |
| Type of Miter Adjustment | Dual Swivel Head |
| Miter Angle Range (Deg.) | 0 – 60°, 45°L |
| Motor (HP) | High Torque 1.1Kw (AC) |
| Return | Manual |
| Shipping Dimensions (L x W x H) (In.) | 69 x 44 x 45 |
| Table Height (In.) | 35″ |
| Weight (Lbs.) | 745 |
*Specifications subject to change without notice
